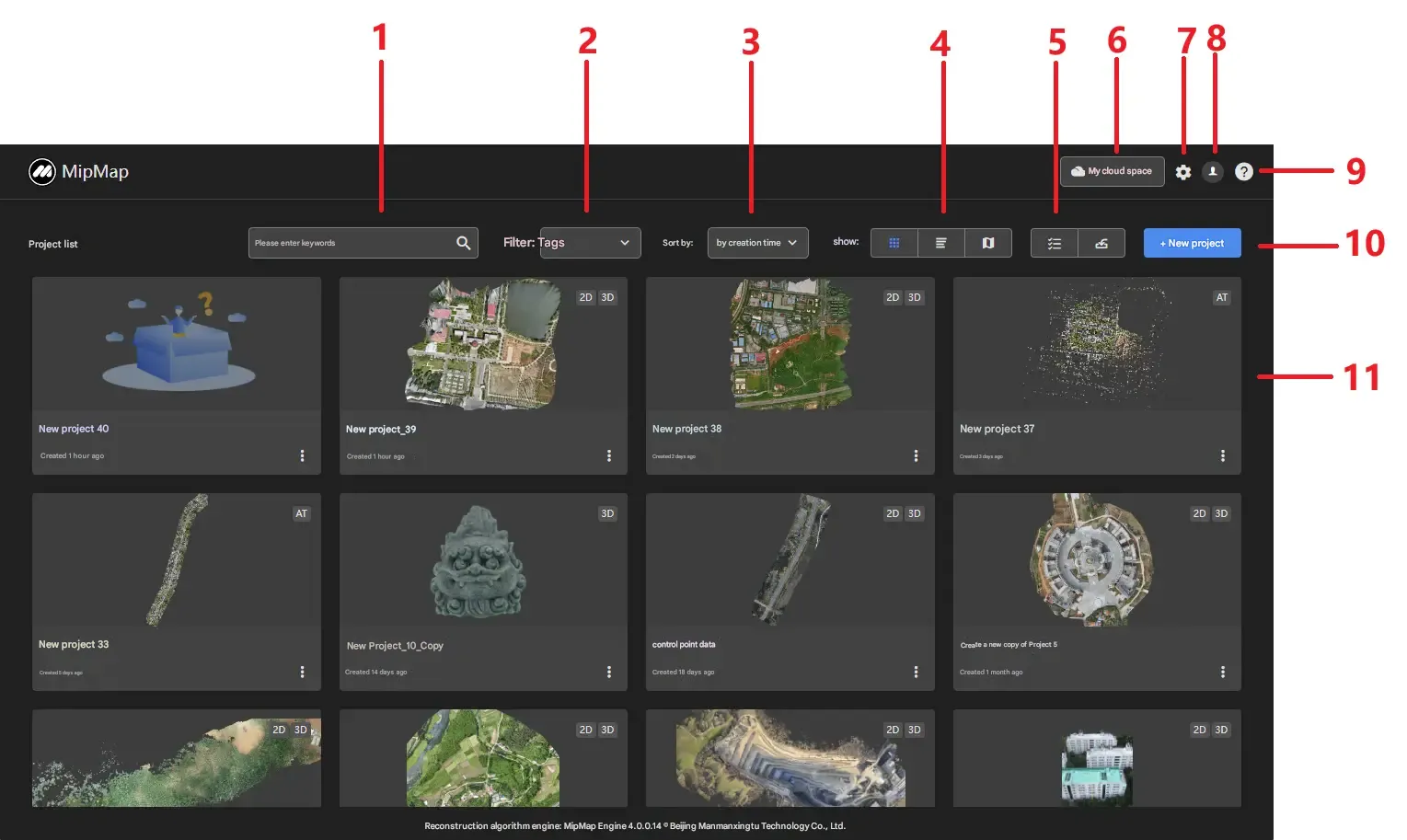

Project Search
: You can enter the complete project name or keywords to search for projects.
Data Tag Filtering
: Click the dropdown box to display projects containing specific tags. Tags are user-defined project attributes.
Project Sorting
: Click the dropdown box to sort and display the project list by certain rules. Specifically, there are three sorting rules: by name, by creation time, and by update time.
Project Display
: Click to select the project list display mode, specifically:
: Card mode, click to display all projects in card format, showing project name, orthophoto thumbnail, status, creation time, update time, tags, and other information on the card.
: List mode, click to display all projects in list format, showing project name, orthophoto thumbnail, status, creation time, update time, tags, and other column headers.
: Map mode, click to display all projects on satellite map or standard map according to their geographic coordinates.
Batch Operations and Project Import
: Batch operation button, enter the batch operation interface to delete or export projects in batch.
: Project import button: Supports importing projects exported from MipMap software.
My Cloud Space
: Click to enter the reconstruction public cloud MipMap Cloud webpage.
Software Settings
: Click to enter the user settings panel, including software version information, license management, and general settings such as working directory:
: Set the working directory for project modeling and other preferences.
: Unbind or change license, display software features and usage period permissions.
: Display software version information, update software version.
Personal Space
: Display personal account, reconstruction public cloud MipMap Cloud link, and perform account logout operations.
View User Manual
Create New Project
: Click to create a new reconstruction project, set the project name, and jump to the <Project Tasks> interface.
Project Card
Click to enter the project's output interface to view the project's 2D/3D model outputs and model reports, and perform mapping and annotation operations.
In addition to project name, 2D output thumbnail, and update time, the project card also includes:
: Project status, including Waiting (waiting for reconstruction), Running (reconstructing), Stopped (reconstruction stopped), AT (only aerial triangulation), 2D (has 2D output), 3D (has 3D output), Error (reconstruction error).
: Project management, click to perform project copy, rename, tag management, and project deletion operations.
: You can enter the complete project name or keywords to search for projects.
: Click the dropdown box to display projects containing specific tags. Tags are user-defined project attributes.
: Click the dropdown box to sort and display the project list by certain rules. Specifically, there are three sorting rules: by name, by creation time, and by update time.
: Click to select the project list display mode, specifically:
: Card mode, click to display all projects in card format, showing project name, orthophoto thumbnail, status, creation time, update time, tags, and other information on the card.
: List mode, click to display all projects in list format, showing project name, orthophoto thumbnail, status, creation time, update time, tags, and other column headers.
: Map mode, click to display all projects on satellite map or standard map according to their geographic coordinates.
: Batch operation button, enter the batch operation interface to delete or export projects in batch.
: Project import button: Supports importing projects exported from MipMap software.
: Click to enter the reconstruction public cloud MipMap Cloud webpage.
: Click to enter the user settings panel, including software version information, license management, and general settings such as working directory:
: Set the working directory for project modeling and other preferences.
: Unbind or change license, display software features and usage period permissions.
: Display software version information, update software version.
: Display personal account, reconstruction public cloud MipMap Cloud link, and perform account logout operations.
: Click to create a new reconstruction project, set the project name, and jump to the <Project Tasks> interface.
: Project status, including Waiting (waiting for reconstruction), Running (reconstructing), Stopped (reconstruction stopped), AT (only aerial triangulation), 2D (has 2D output), 3D (has 3D output), Error (reconstruction error).
: Project management, click to perform project copy, rename, tag management, and project deletion operations.
